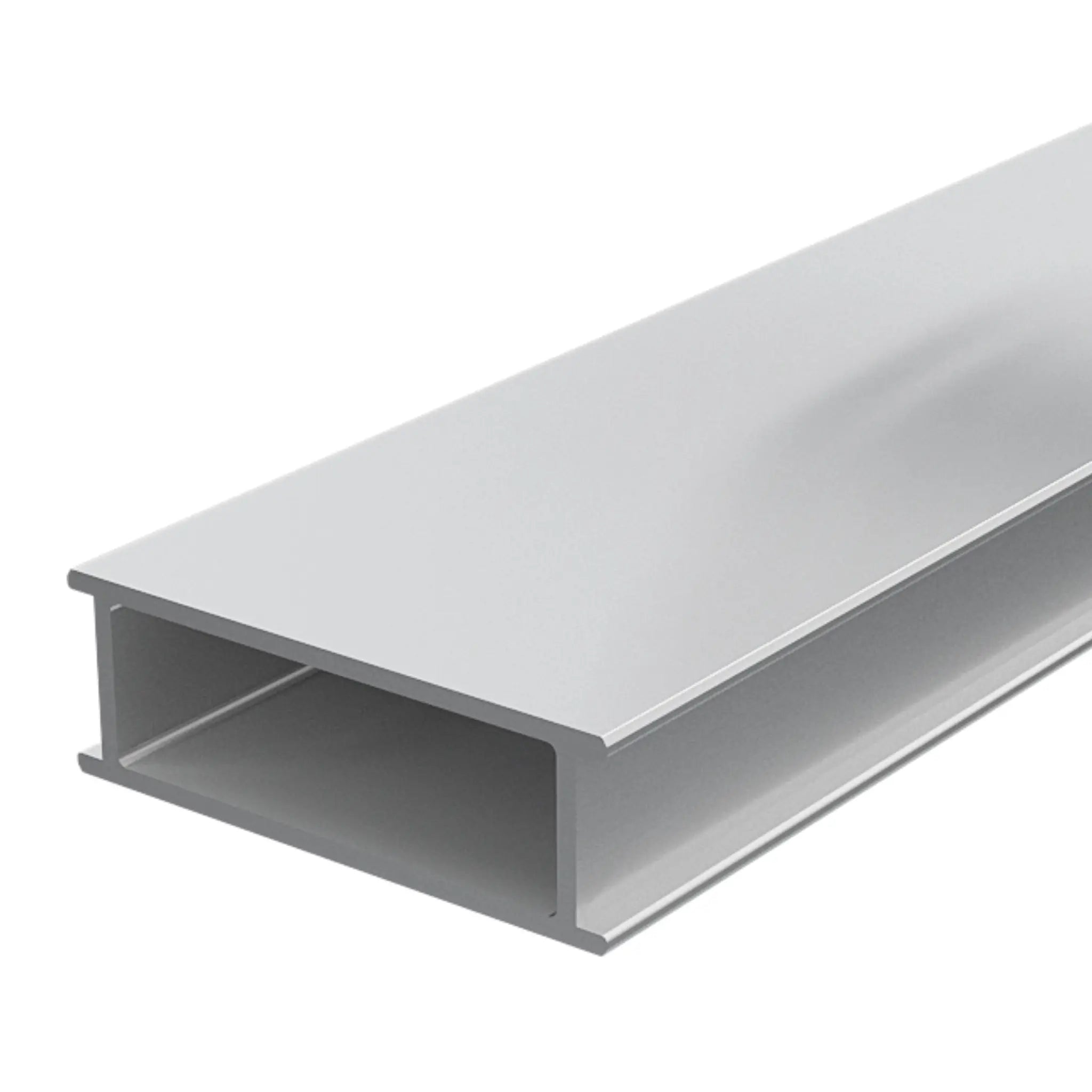

Rail de support pour système de plots en aluminium avec ouverture rectangulaire à l'avant

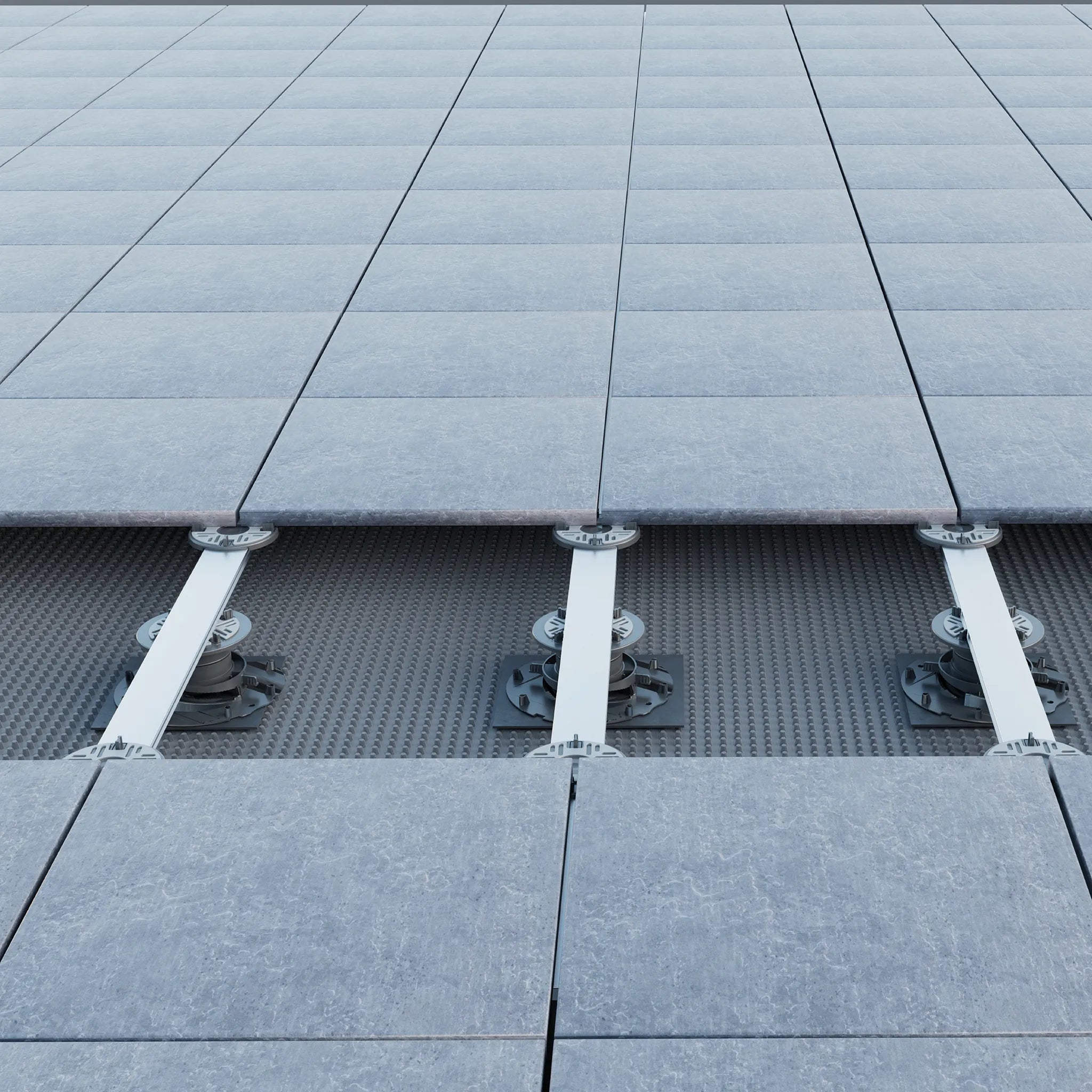

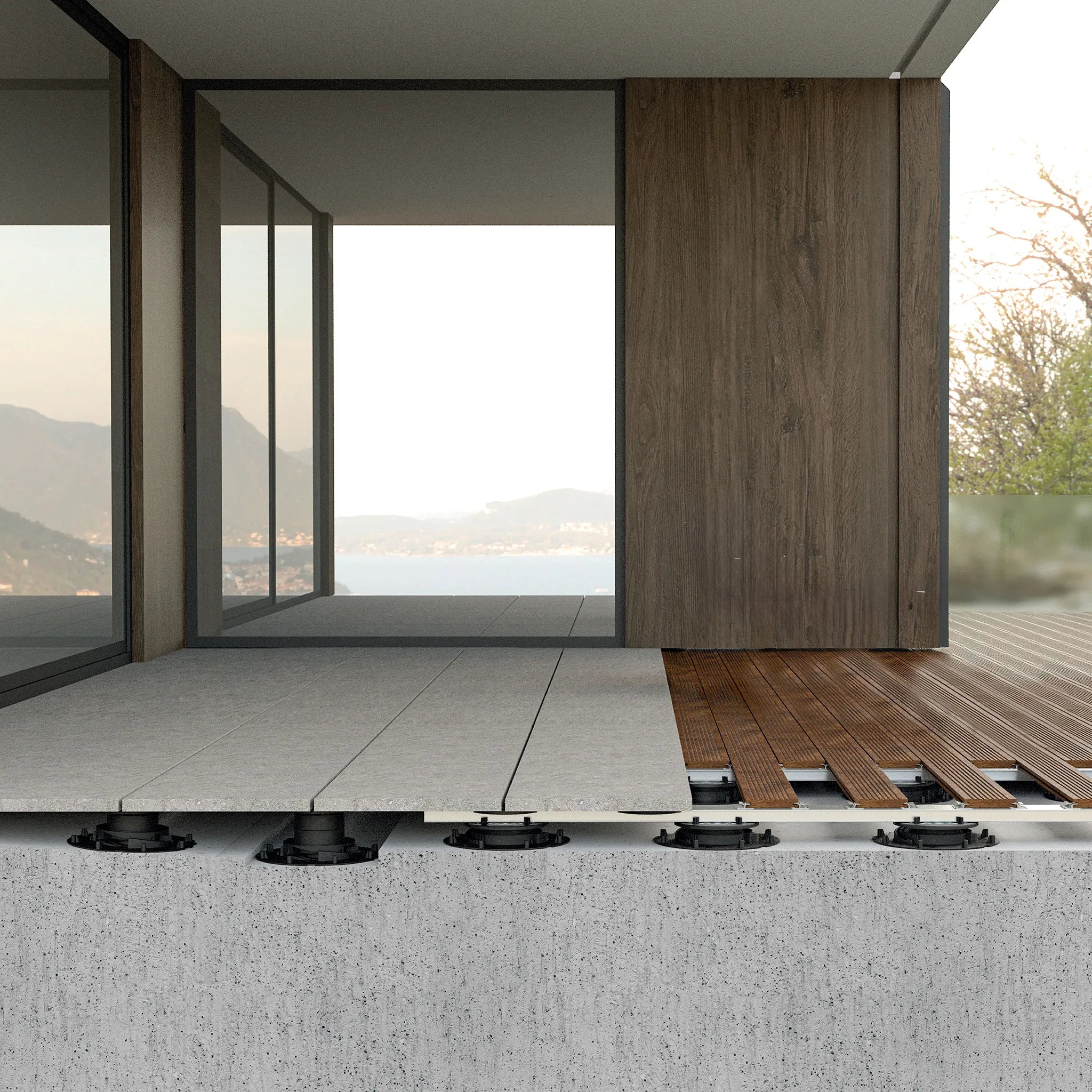

Image d'ambiance des plots Pro en combinaison avec un système de rails devant une maison moderne.
Trägerschiene für Stelzlager unter Fliesenbelag verarbeitet mit passenden Schienenaufsätzen
Prev icon
Next icon

Paving pedestal rail Flexibal Pro

Article No.: FR0005224
EAN: 4018448198308
Inhalt: 2.0 m | 22,99 € m
Order matching accessories directly
Tête de plot gris avec joint de 2mm de largeur #FR0005240 #FR0005243

Rail attachment Flexibal Pro

2 mm / 1 piece
1,50 €
0

2 mm / 1 piece

2 mm / 1 piece
Hinzufügen Mehr erfahren
Tête de plot gris avec joint de 2mm de largeur #FR0005240 #FR0005243

Rail attachment Flexibal Pro

4 mm / 1 piece
2,72 €
0

4 mm / 1 piece

4 mm / 1 piece
Hinzufügen Mehr erfahren
Tête de plot gris avec joint de 2mm de largeur #FR0005240 #FR0005243

Rail attachment Flexibal Pro

4 mm / 25 pieces
60,91 €
0

4 mm / 25 pieces

4 mm / 25 pieces
Hinzufügen Mehr erfahren
Tête de plot gris avec joint de 2mm de largeur #FR0005240 #FR0005243

Rail attachment Flexibal Pro

2 mm / 25 pieces
35,48 €
0

2 mm / 25 pieces

2 mm / 25 pieces
Hinzufügen Mehr erfahren
45,98 €
45,98 €
incl. 20% VAT plus shipping
Inform me when available
Currently not available

  • Delivery time: 1-3 days in France

Estimated Shipping Widget will be displayed here!

Paving pedestal rail Flexibal Pro
45,98 €
45,98 €
incl. 20% VAT plus shipping
image Product description
Product description

Pedestal support rail system for stable decking structures

Our FLEXIBAL pro rail system offers maximum stability, load-bearing capacity and torsional rigidity, even for high decking structures. The robust aluminium rails
for snapping into place have a load-bearing capacity of 400 kg with a maximum spacing of 50 cm between the pedestal bases. Additional accessories are of course also available in our shop. Exclusively for our adjustable paving support pedestals.

technical data

DURAL Flexibal Pro support rail properties:

Material Aluminium
Width 60 mm
Length 200 cm
Load capacity up to 400 kg
Applications
Processing

Processing the rails of the pedestal bearing rail system:

  1. Aligning the pedestal bearing heads:
    The pedestal bearing heads (except for pedestal bearing head S) are rotated by 45°.
  2. Snap in the rails:
    The rails can now simply be clicked onto the pedestals. To connect individual rails, it is recommended to fix the connecting pieces with assembly adhesive.
Care advice
