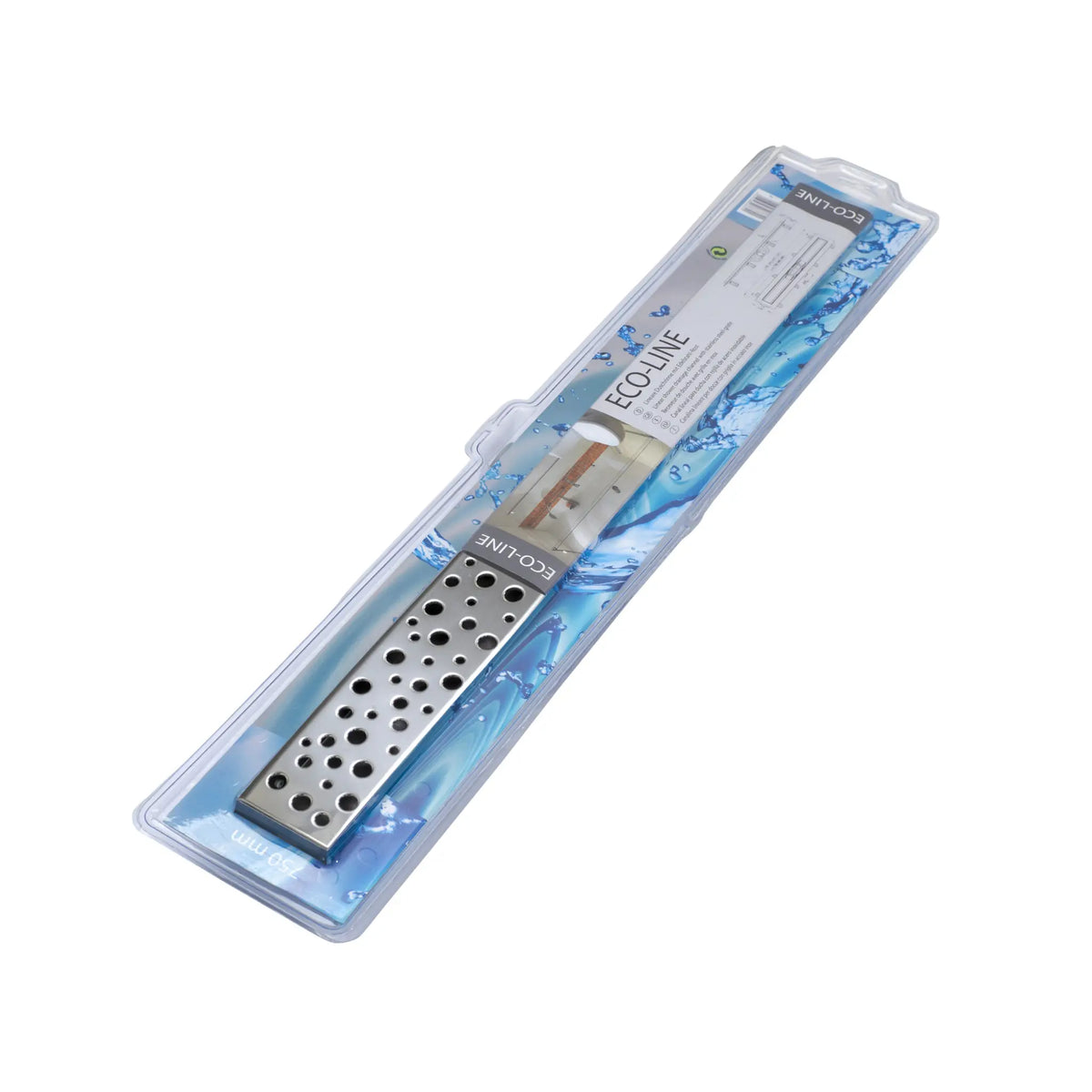

Caniveau de douche ECO-Line en acier inoxydable vu de dessus

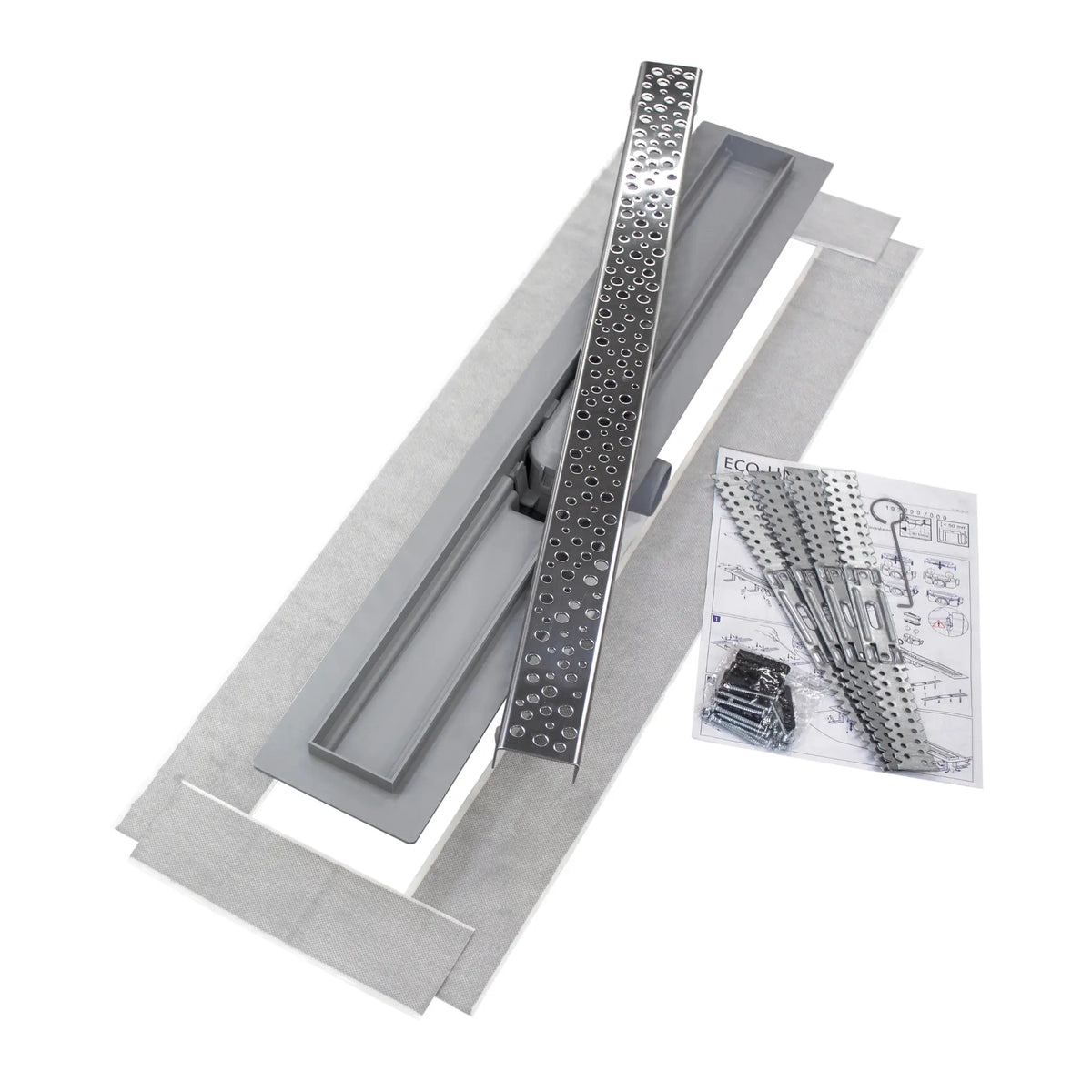

Caniveau de douche ECO-Line en acier inoxydable avec grille amovible

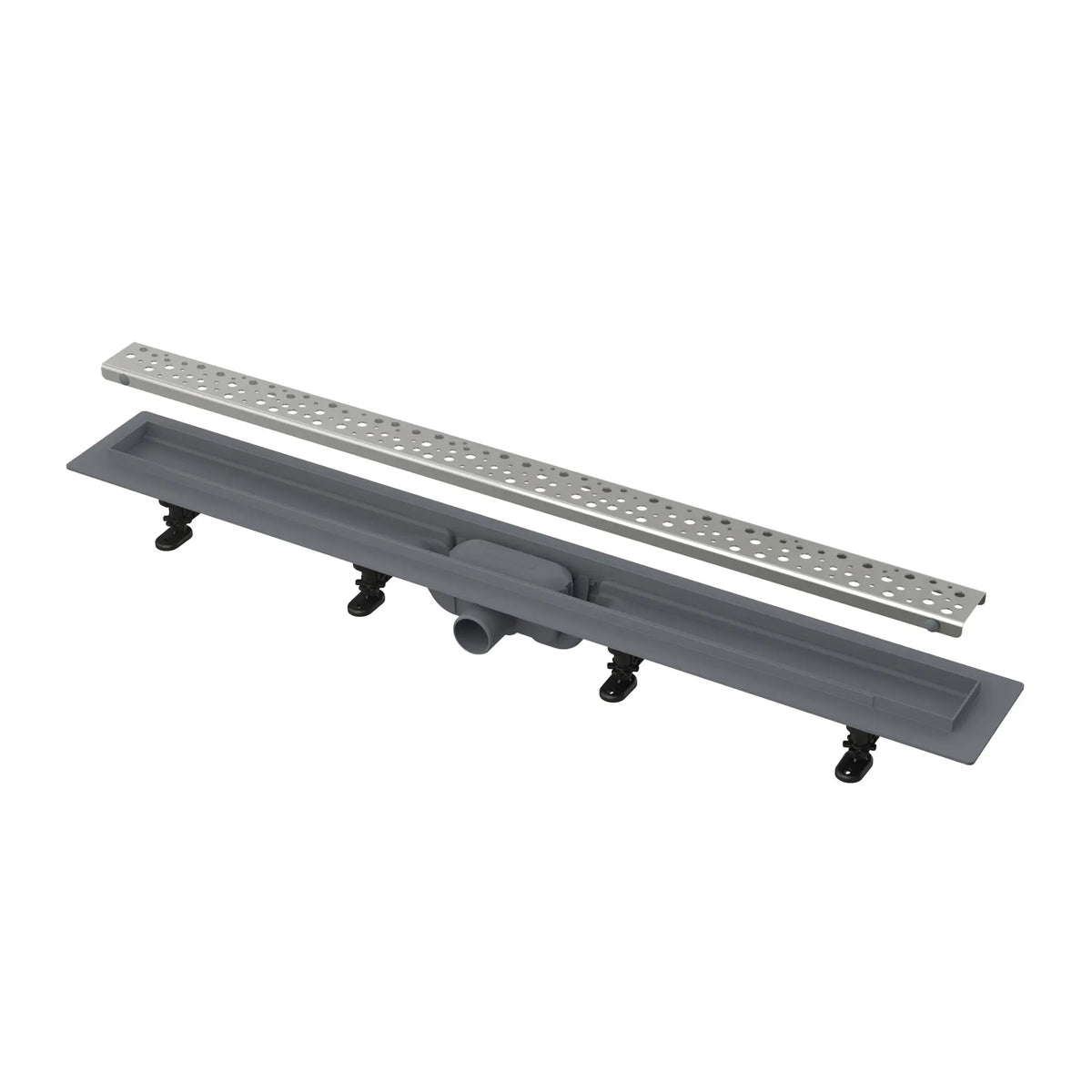

Caniveau de douche ECO-Line sur pieds réglables avec écoulement horizontal à l'avant

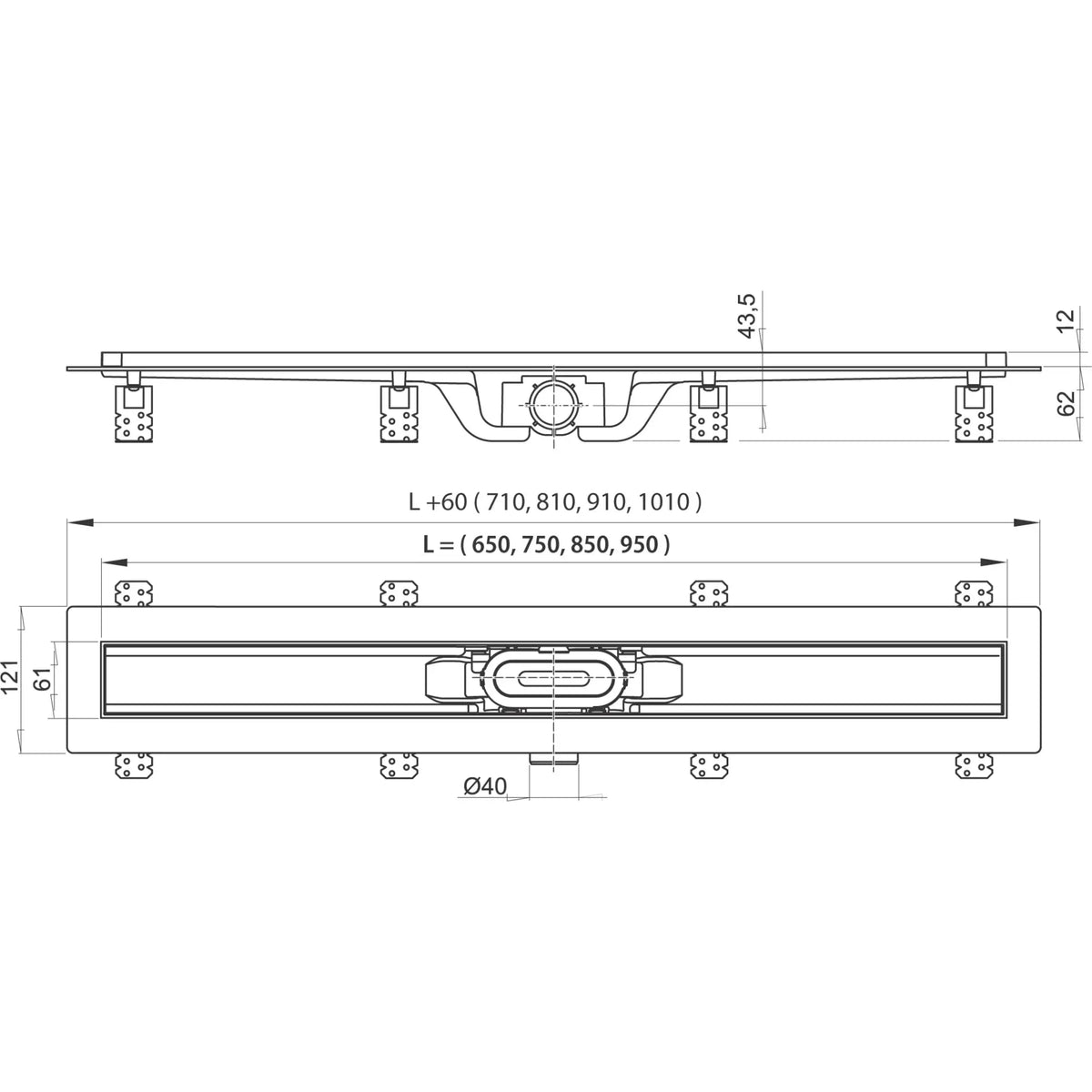

Dessin technique coté du caniveau de douche ECO-Line
Prev icon
Next icon

Shower drain ECO-LINE stainless steel

Article No.: FR0005370
EAN: 4018448108536
Inhalt: 1.0 pcs | 98,33 € pcs
98,33 €
98,33 €
incl. 20% VAT plus shipping
In stock

  • Delivery time: 1-3 days in France

Estimated Shipping Widget will be displayed here!

Shower drain ECO-LINE stainless steel
98,33 €
98,33 €
98,33 € item
incl. 20% VAT plus shipping
image Product description
Product description

Shower drain ECO-LINE made of stainless steel

The Dural ECO-LINE shower drain is the ideal solution for level-access showers in new builds and renovations. With its low installation height of around 62 mm, it is particularly suitable for bathrooms with limited floor build-up. The channel body made of sturdy plastic is dimensionally stable and chemical-resistant, while the removable stainless steel grate provides a modern look and easy cleaning.

The integrated odour trap and the DN 40 drain connection ensure reliable drainage while maintaining a compact design. The shower drain is available in various lengths and can be installed quickly and precisely.

Advantages at a glance:

  • Low installation height – ideal for refurbishments and modernisations
  • Robust channel body made of plastic with stainless steel cover
  • Reliable drainage through integrated odour trap
Technical data

Shower drain ECO-LINE properties:

Visible dimension 650 - 950 mm
Total length 710 - 1010 mm
Total installation height 75 - 110 mm
Minimum concrete thickness 62 mm
Material V2A stainless steel,
Grate surface V2A stainless steel with wave pattern
Horizontal drain DN 40
Scope of delivery • Shower drain incl. substructure set
• Hook for removal
• Mounting material
• Odour trap
• Polished grate with protective film
• Height-adjustable support feet
Applications

Application areas of the shower drain Eco-Line

  • Walk-in showers for barrier-free access
  • Residential bathrooms with modern design
  • Renovations and conversions with limited installation height
  • Showers in holiday apartments, guest bathrooms or hotels where a low-maintenance solution is required
Processing

Installation of the shower drain ECO-Line

  1. Preparation: Determine installation location, check substrate and create the necessary slope towards the drain.
  2. Position the channel: Align the ECO-LINE shower drain to the desired height and fix in place.
    Connect the drain outlet (DN 40) to the waste pipe and check for leaks.
  3. Waterproofing: Seal transitions around the channel with sealing tape or liquid membrane.
    Fully integrate the channel into the waterproofing layer.
  4. Lay screed and tiles: Apply screed and level it to the channel edge. Lay tiles with a slope towards the channel and carefully align the edges.
  5. Final work: Insert the grate and carry out a function test. Clean the surface and check for watertight drainage.
