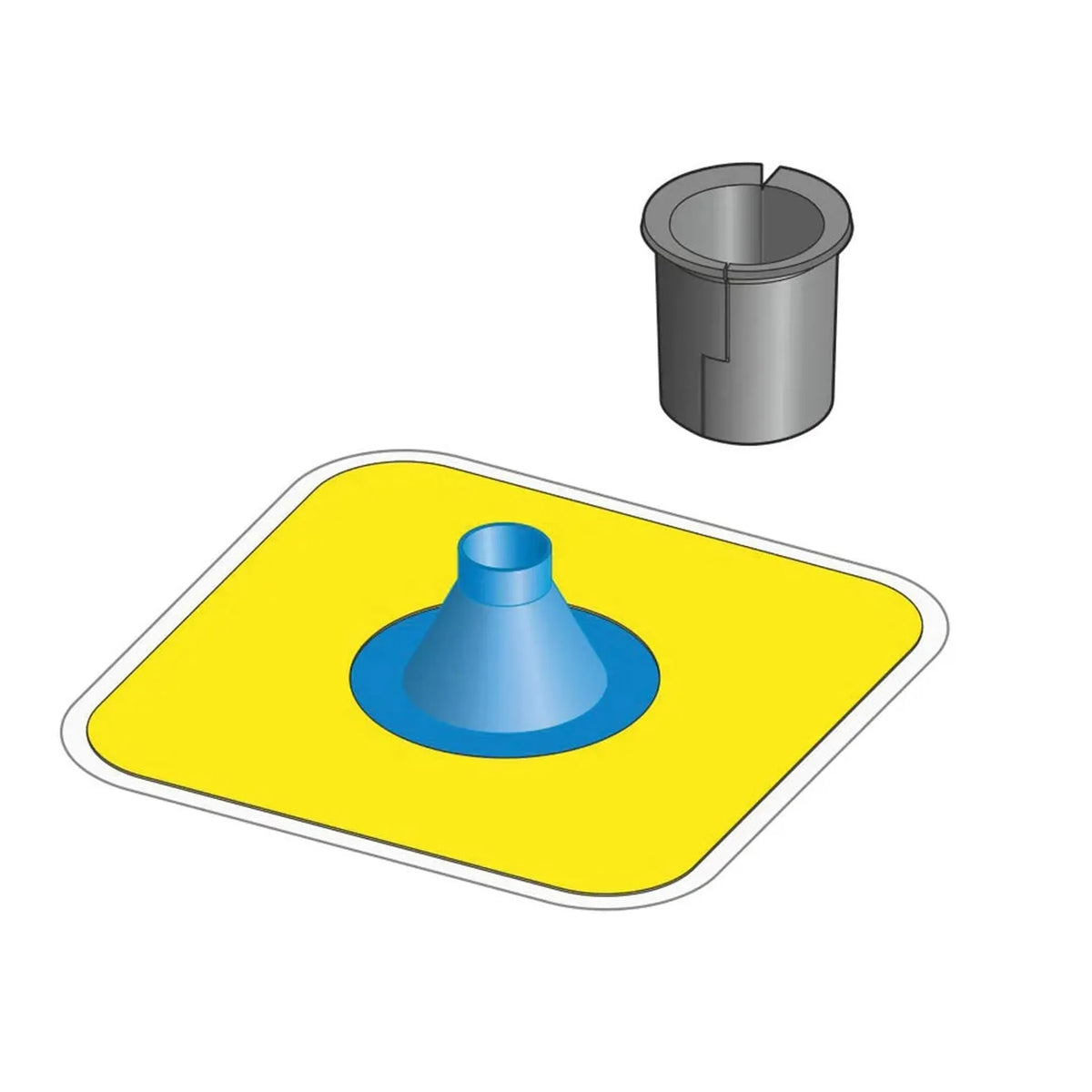

Pipe collar WS

How to attach the WS pipe collars WS features:

The installation takes place before the panels themselves are laid.

1. Drop protection cuff position it centrally to the connection.
2. Align cuff collars: First, spread the insertion sleeve slightly and place it on the sealing sleeve. Then use your thumbs to push the insertion sleeve over the fitting in the direction of the pipe connection. Use the insertion sleeve to push the sealing sleeve collar over the pipe connection. The collar must sit tightly on the water connection! Finally, remove the insertion sleeve and screw in a construction plug.
3. Prepare the surface: First of all, fold the sleeve inwards twice and wrap it around the construction plug. Slide the insertion sleeve with lubricating grease over the construction plug so that the folded sleeve holds together. Now plaster and prime the wall surface.
4. Fixing the drop protection sleeve WS: First remove the insertion sleeve and unfold the cuff. Important! Remove any excess lubricant completely. Now peel off the film on the back and use a spatula to press the cuff firmly onto the surface.

The drop protection cuff is now again overlapped with self adhesive waterproof sealing tape WS. The strips are then laid again over the attached tape.

Areas of application of the pipe collars WS:

This product is designed for sealing pipe connections.

The drop protection cuff WS is an effective protection that prevents water from penetrating the walls or floors and causing potential damage.
